HIGH-END INTELLIGENT
SPECIAL MACHINE LARGE GANTRY
MACHINING EQUIPMENT PROVIDER

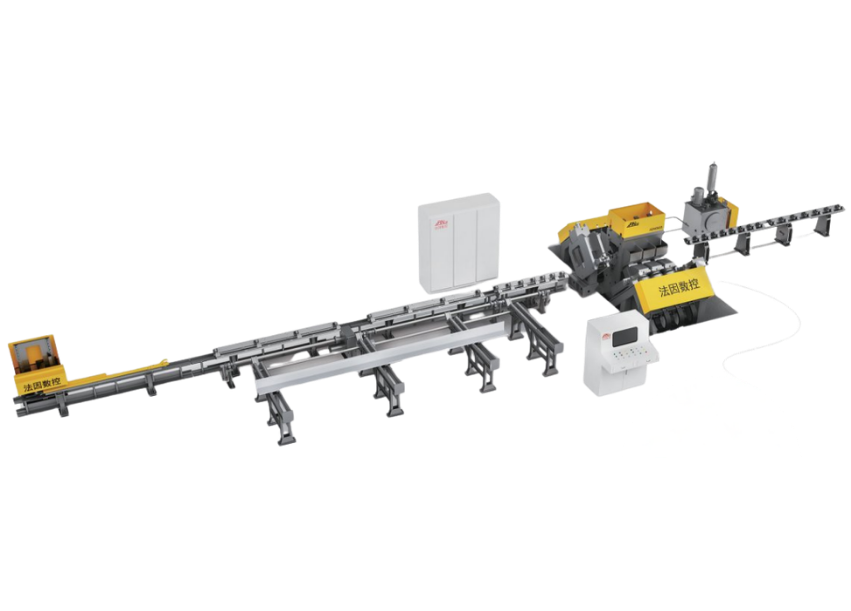

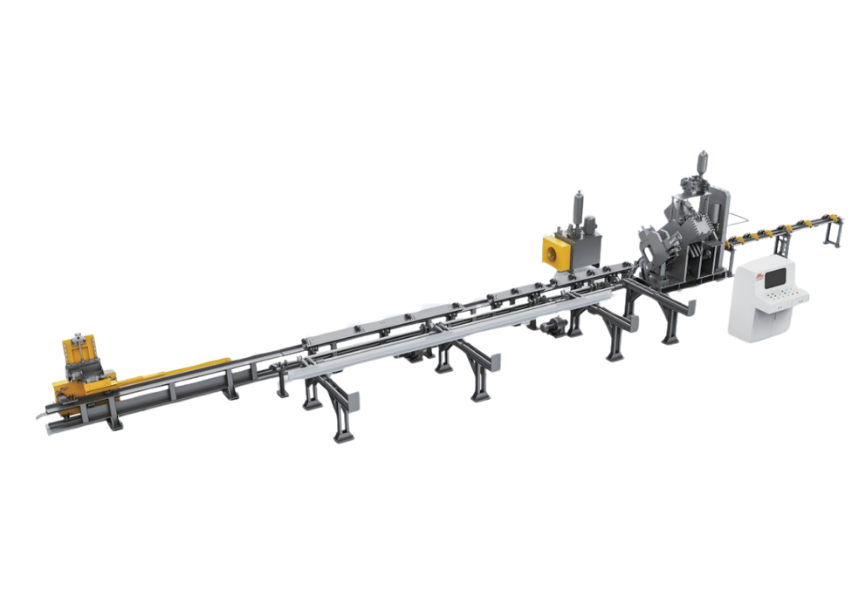

APM SERIES
CNC Angle Punching Shearing and Marking Machine

APM Series Specification Table
Model APM1010 APM1412 APM1616 APM2020 Unit
Min/Max Angle Profile Size 40*40*3~100*100*10 40*40*3~140*140*12 40*40*3~160*160*16 63*63*4~200*200*20 mm
Punches Per-side 2/3 (Optional) 2/3 (Optional) 3 3 Qty.
Max. Punching Force 440/950 (Optional) 540/950 (Optional) 950 950/1100 (Optional) kN
Max. Punching Diameter Φ26 / Φ22*50
(Long hole)		 Φ26 / Φ22*50
(Long hole)		 Φ26 Φ26 mm
Cutting Blade Type Single Blade Shearing Single Blade Shearing
/ Double Blade Cutting		 Single Blade Shearing Single Blade Shearing
/ Double Blade Cutting
Max. Cutting Force 1100 1800/750 (Optional) 3000 4300/1540 (Optional) kN
Marking Type Cassette/Disc (Optional) Cassette/Disc (Optional) Cassette/Disc (Optional) Cassette/Disc (Optional)
Nominal Marking Force 1000/1200/80 (Optional) 1000/1200/80 (Optional) 1000/1200/80 (Optional) 1000/1200/80 (Optional) kN
Character Size 14*10*19/20*12*19 14*10*19/20*12*19 14*10*19/20*12*19 14*10*19/20*12*19 mm

ADM
CNC High-speed Angle Drilling and Marking Machine

ADM Series Specification Table
Model ADM2532 ADM3635 Unit
Min/Max Angle Profile Size 90*90*6~250*250*32 90*90*6~360*360*35 mm
Spindles Per Side 3 3 Qty
Max. Punching Force Φ26 Φ40 mm
Spindle Rotating Speed 0~6000 0~6000 rpm
Spindle Power 11 15 kW
Nominal Marking Force 1200/1500 (Optional) 1200/1500 (Optional) kN
Optional Items
Double Blade Cutting Max. Cutting Angle Profile Size 200*200*24 Max. Cutting Angle Profile Size 200*200*24 mm
Single Blade Shearing Max. Cutting Angle Profile Size 200*200*20 Max. Cutting Angle Profile Size 200*200*20 mm

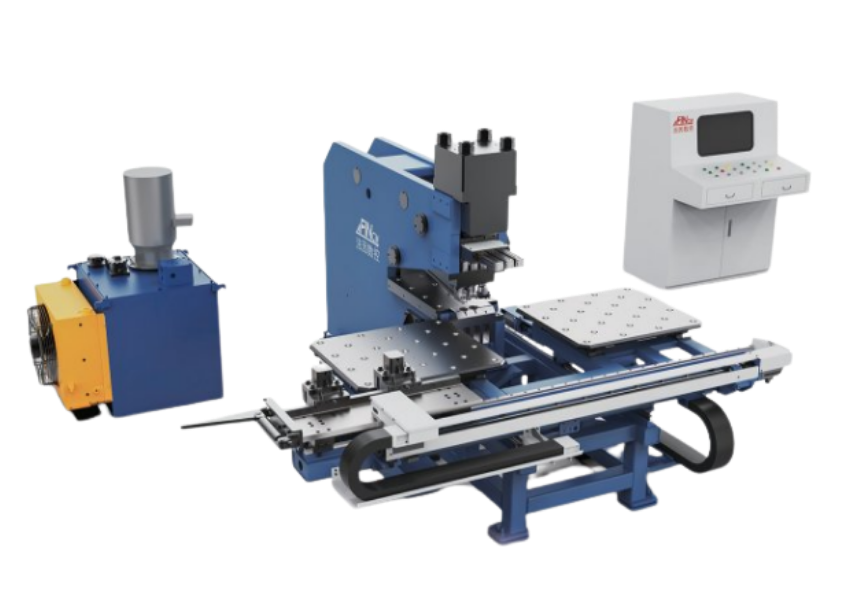

PP/PPD/PPHD SERIES
CNC Plate Punching Drilling Machine

PP Series Specification Table
Model PP103 / PPD103 PP123 / PPD123 / PPHD123 PP153 / PPHD153 Unit
Max. Plate Size 1500*800 1500*800 1500*800 mm
Min/Max Thickness 5~25 5~25 5~25 mm
Number Of Punching Positions 2 2 2 Qty.
Max. Punching Force 1000 1200 1500 kN
Max. Punching Diameter Φ26 Φ30 Φ30 mm
Drilling Unit None / Low Speed Drilling (Optional) None / Low Speed Drilling / High-speed Drill (Optional) None / High-speed Drilling (Optional)
Max. Drilling Diameter None / Φ50 None / Φ50 / Φ40 None / Φ50 mm
Marking Position Quantity 1 1 1 Qty
Nominal Marking Force 800 1000 1200 kN
Character Size 14*10*19 / 20*12*19 (Optional) 14*10*19 / 20*12*19 (Optional) 14*10*19 / 20*12*19 (Optional) mm

PHM
Gantry Mobile CNC Drilling and Milling Machine for Tube Plates/FIanges

Machine Specification Table
Parameter Name Item Parameter Value
PHM6030 PHM8040 PHM12050 PHM16060
Processing Range Length × Width (mm) 6000×3000 8000×4000 12000×5000 16000×6000
Worktable T-slot width (mm) 28
Quantity 1
Spindle Spindle Taper Hole BT50
Spindle Speed (r/min) 30-3000 r/min
Maximum Output Power (kW) / Torque (Nm) 37 / 470 (1100 Optional)
Ram Vertical Stroke mm 800/1200 800/1200 800/1200 1800/2500
Positioning Accuracy X, Y Axis (mm/full length) ≤0.04 ≤0.05 ≤0.06 ≤0.08
Repeat Positioning Accuracy X, Y Axis (mm) ≤0.025 ≤0.030 ≤0.035 ≤0.05
Electrical System CNC System Siemens 828D

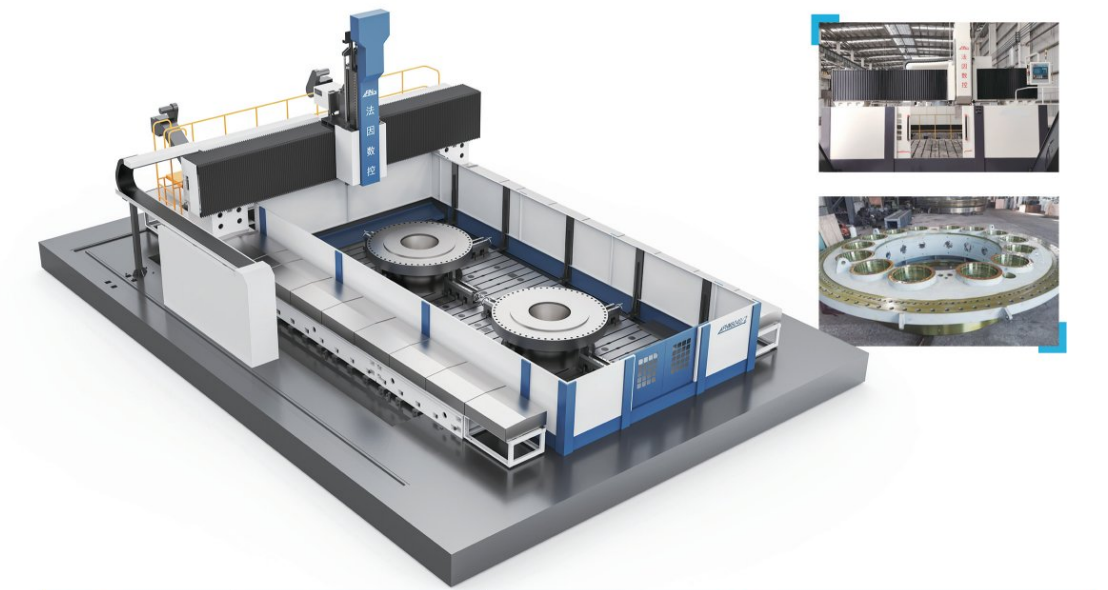

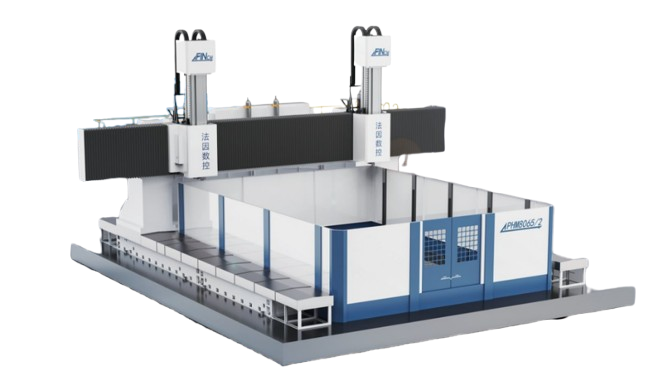

PHM/2

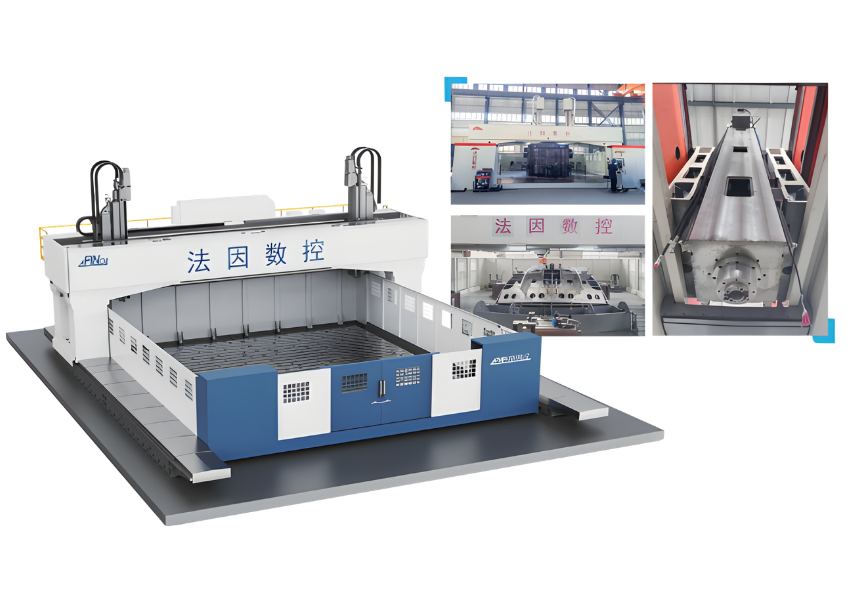

Dual-spindle Gantry Mobile CNC Drilling and Milling Machine for Tube Plates/Flanges

Machine Specification Table
Parameter Name Item Parameter Value
PHM6060/2 PHM8065/2 PHM8080/2 PHM100100/2
Processing Range Length x Width (mm) 6000×6000 8000×6500 8000×8000 10000×10000
Worktable T-slot width (mm) 28
Quantity 2
Spindle Spindle taper hole BT50
Spindle speed (r/min) 30-3000
Maximum output power (kW) / Torque (Nm) 37 / 470 (1100 optional)
Ram Vertical Stroke mm 800 / 1200 800 / 1200 800 / 1200 1200 / 1500
Positioning Accuracy X, Y Axis (mm / full length) ≤0.04 ≤0.05 ≤0.05 ≤0.06
Repeated Positioning Accuracy X, Y Axis (mm) ≤0.025 ≤0.030 ≤0.030 ≤0.035
Electrical System CNC System Siemens 828D

PHMD/2
Gantry Mobile Double-beam Dual-spindle Heavy-duty CNC Drilling and Milling Machine for Tube Plates/Flanges

Machine Specification Table
Parameter Name Item Parameter Value
PHMD8080/2 PHMD100100/2 PHMD120120/2 PHMD160160/2
Processing Range Length x Width (mm) 8000×8000 10000×10000 12000×12000 16000×16000
Worktable T-slot width (mm) 28
Quantity 2
Spindle Spindle Taper Hole BT50
Spindle Speed (r/min) 30-3000
Maximum Output Power (kW) / Torque (Nm) 37 (1100)
Ram Vertical Stroke mm 1200 / 1800 / 2500
Positioning Accuracy X, Y Axis (mm / full length) ≤0.04 ≤0.05 ≤0.06 ≤0.08
Repeat Positioning Accuracy X, Y Axis (mm) ≤0.02 ≤0.025 ≤0.03 ≤0.04
Electrical System CNC System Siemens 828D

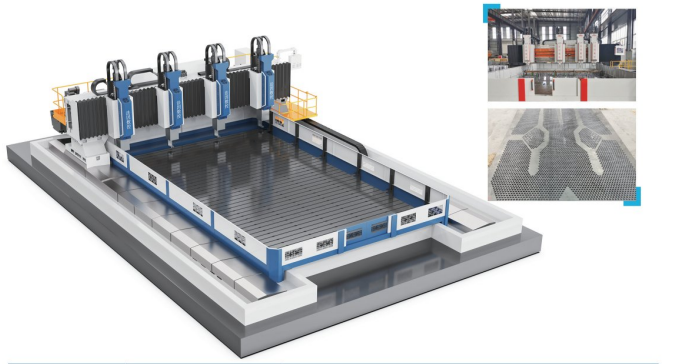

PHM/4
Four-spindle Gantry Mobile CNC Drilling and Milling Machine for Tube Plates/Flanges

Machine Specification Table
Parameter Name Item Parameter Value
PHM6060/4 PHM9060/4 PHM12060 PHM20060
Processing Range Length x Width (mm) 6000×6000 9000×6000 12000×6000 20000×6000
Worktable T-slot width (mm) 28
Quantity 4
Spindle Spindle Taper Hole BT50
Spindle Speed (r/min) 30-3000
Maximum Output Power (kW) / Torque (Nm) 30 / 380
Ram Vertical Stroke mm 500 / 800
Positioning Accuracy X, Y Axis (mm / full length) ≤0.05 ≤0.05 ≤0.06 ≤0.08
Repeated Positioning Accuracy X, Y Axis (mm) ≤0.02 ≤0.025 ≤0.03 ≤0.04
Electrical System CNC System Siemens 828D

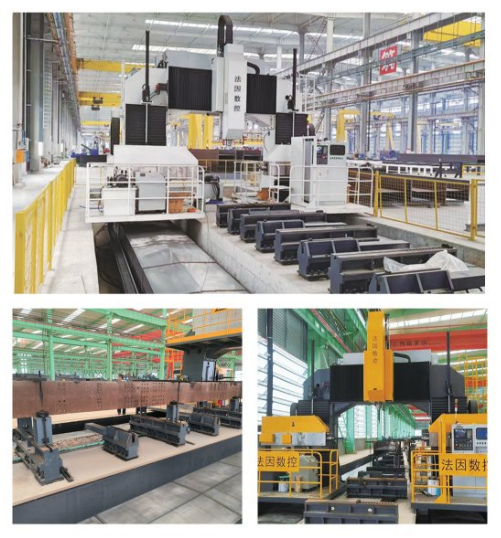

BDH /BDL SERIES
GANTRY MOVABLE CNC
DRILLING MACHINE FOR BEAMS

Machine Specification Table
Model BDH1515/3 BDL2015/3 BDL3015/3 Unit
Web Width Min./Max. 400-1500 1000-2000 1500-3000 mm
Flange Height Lin./Max. 400-1500 500-1500 500-1500 mm
Drilling Spindle Numbers 3 3 3 Qty.
Max. Drilling Dia Φ40 Φ50 Φ50 mm
Max. Rotation Speed 3000 560 560 rpm
Spindle Power 18.5 7.5 7.5 kW
CNC Axis 10 8 8 Qty.

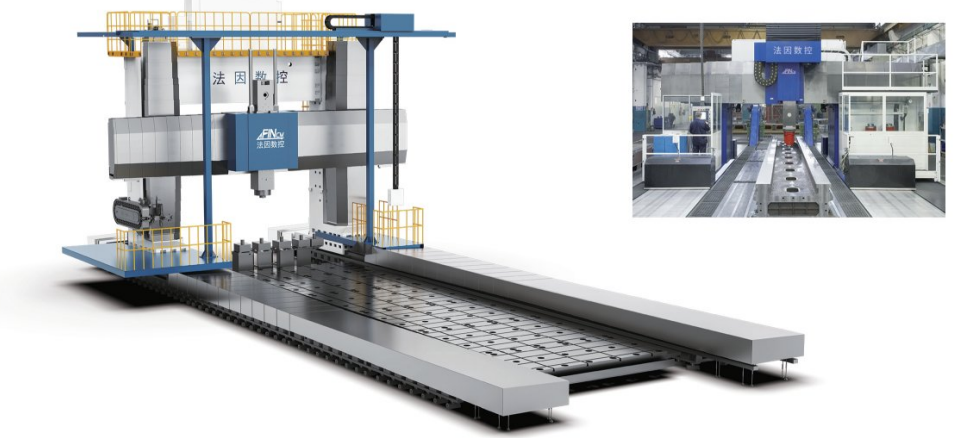

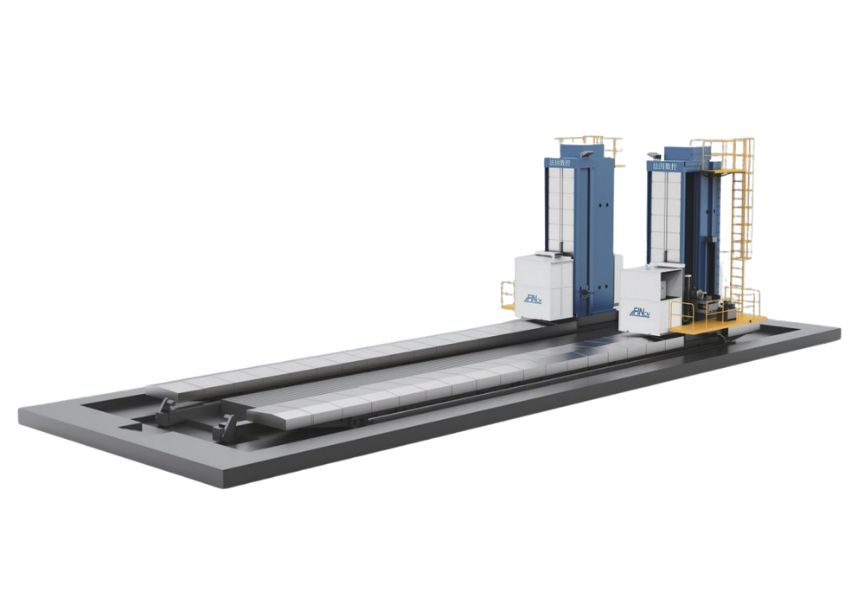

GHM/GHMW
Gantry Mobile CNC Boring and Milling Machine for Tube Plates/Flanges

Machine Specification Table
Parameter Name Item Parameter Value
GHM5050 GHM8080 GHMW20040 GHMW16060
Worktable Width 5000 8000 4000 6000
Load-bearing 5t/m² 5t/m² 5t/m² 5t/m²
T-slot width (mm) 28 / 36
CNC Axis Stroke X-axis 5000 8000 20000 16000
Y-axis 5000 8000 6500 7500
Z-axis 1250 / 1500 1250 / 1500 1250 / 1500 1250 / 1500
W-axis 2000 / 2500
Spindle Quantity 1
Spindle taper hole BT50
Spindle speed (r/min) 30-2500 r/min
Maximum output power (kW) / Torque (Nm) 37 / 1100 85 / 4000
Positioning Accuracy X, Y, Z-axis (mm) 0.015 / 1000
Repeated Positioning Accuracy X, Y, Z-axis (mm) 0.012 / 1000
Electrical System CNC system Siemens 828D

BENCHMARK FOR STEEL STRUCTURE
INTELLIGENT PROCESSING

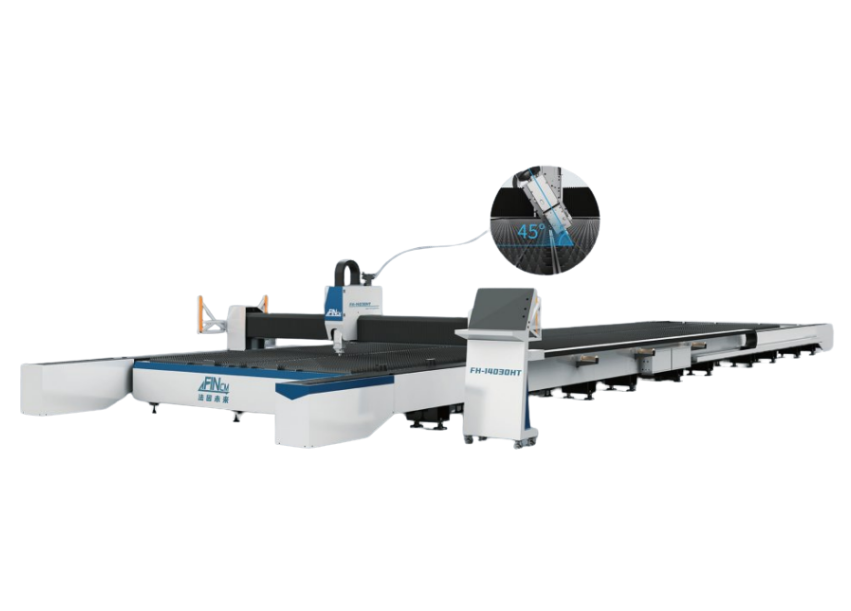

LARGE FORMAT
LASER CUTTING MACHINE

FP Series Specification Table
Model FP-14030HT FP-16030HT FP-24030HT
Processing Area 14200×3200 mm 16200×3200 mm 24200×3200 mm
Laser Power 12000W-120000W
X/Y-axis Positioning Accuracy 0.1 / 10m
X/Y-axis Repeated Positioning Accuracy 0.05 mm
Maximum Empty Operating Speed 80 m/min
Maximum Acceleration 0.7G

PREFERRED FOR STEEL
STRUCTURE PROCESSING

Machine Specification Table
Model BHD500/3 BHD705/3 BHD1005/3 BHD1206/3 BHDM1206/3 Unit
Web Width Min./Max. 150-500 150-700 150-1000 150-1250 150-1250 mm
Flange Height Lin./Max. 75-350 75-500 75-500 75-600 75-600 mm
Drilling Spindle Numbers 3 Qty.
Tools on Each Spindle 3 1 1 4 4 Qty.
Moving Distance of the Spindle's Small X-axis 0-620 mm
Max. Drilling Dia. Φ30 Φ30 Φ40 Φ40 Φ40 mm
Max. Rotation Speed 3000 rpm
Spindle Power 7.5 7.5 15 15 15 kW
CNC Axis 7 7 7 7 10 Qty.

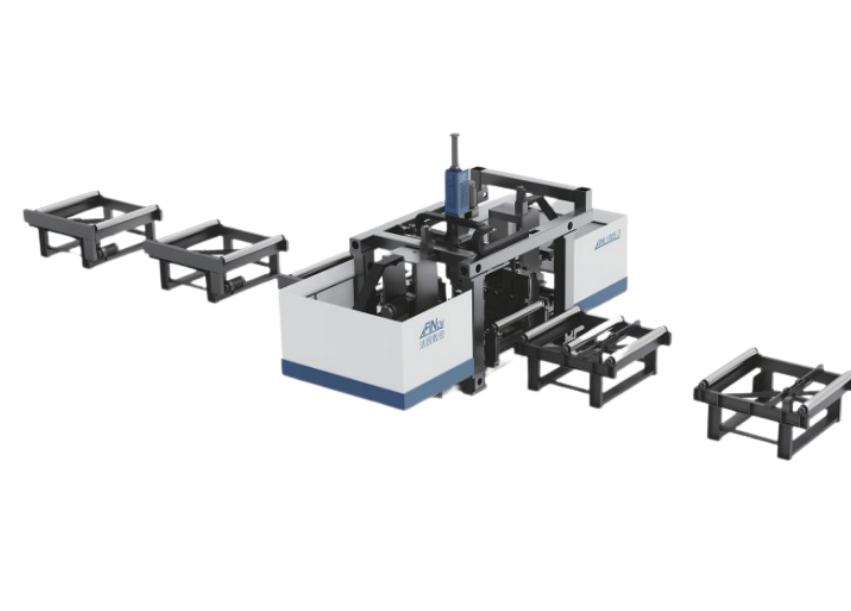

DHL SERIES
CNC DRILLING
MACHINES FOR H-BEAMS

Machine Specification Table
Model DHL1005/3 DHL1206/3 Unit
Web Width Min./Max. 150-1000 150-1250 mm
Flange Height Lin./Max. 75-500 75-600 mm
Drilling Spindle Numbers 3 Qty.
Moving distance of the spindle's small X-axis 0-620 mm
Max. Drilling Dia. Φ30 mm
Max. Rotation Speed 560 rpm
Spindle Power 4 kW

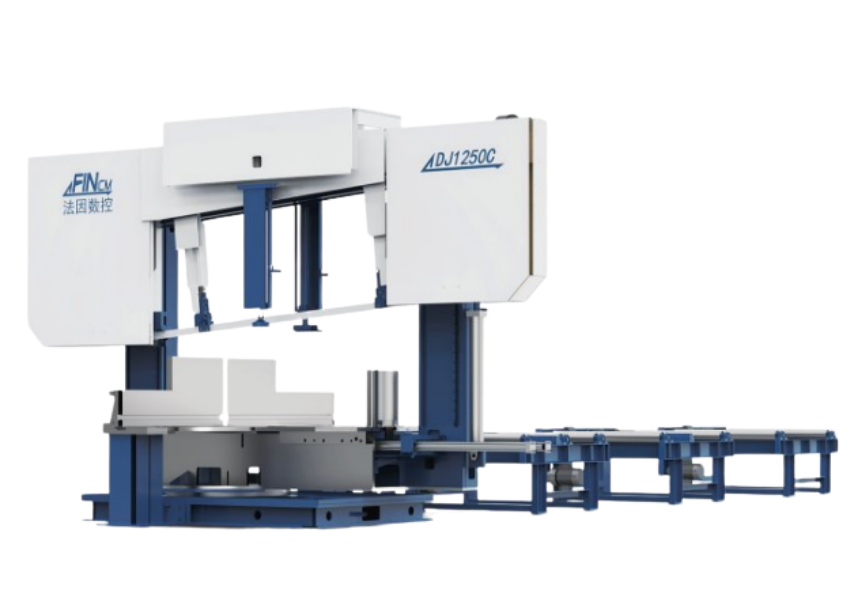

DJ SERIES
CNC BAND SAWING
MACHINES FOR BEAMS

Machine Specification Table
Model DJ500 DJ700 DJ1000 DJ1250 Unit
Web Width Min./Max. 500×400 700×500 1000×500 1250×600 mm
Rotation Angle 0–45° (Standard) mm
±60° (Optional) Qty.
Spindle Power 5.5 7.5 11 15 kW
Feeding Type Carriage

BM SERIES
CNC BEVELING
MACHINES FOR H-BEAMS

Machine Specification Table
Model BM55/6 BM55/12 Unit
Web Width Min./Max. 220-1250 mm
Flange Height Min./Max. 100-600 mm
Flange Thickness Min./Max. 55 mm
Miling Spindle 6 12 Qty.
Spindle Power 15×2 15×4 kW

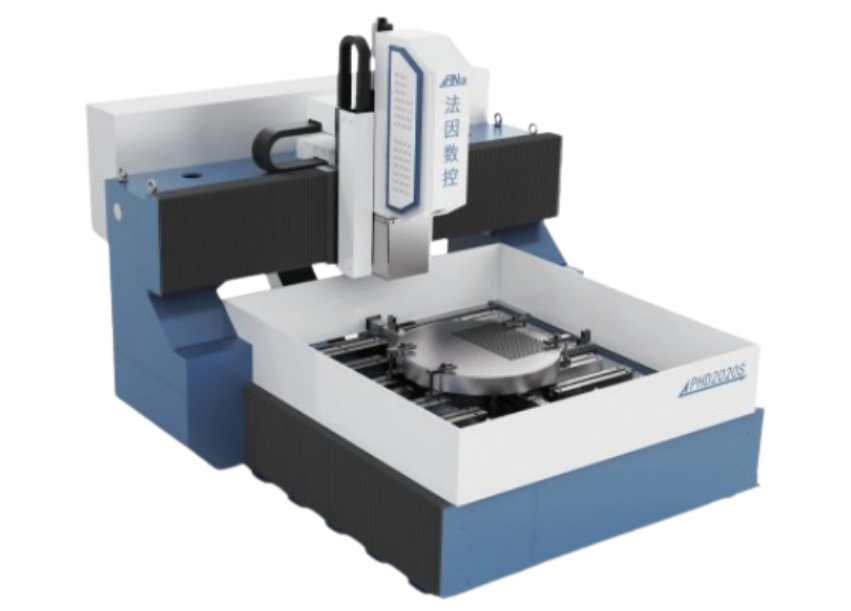

PLD/PHD SERIES
CNC DRILLING
MACHINES FOR PLATES

Machine Specification Table
Model PLD2016 PHD2016 PHD2020 PHD3030 Unit
Max. Plate Size 2000×1600 2000×1600 2000×2000 3000×3000 mm
Min./Max. Size Thickness 15-100 mm
Material Clamping Method Hydraulic clamp Hydraulic clamp
+
Self-centering Chuck
Max. Drilling Diameter Φ50 Φ50 Φ80 Φ80 mm
Spindle Rotating Speed 120-560 0-3000 0-3000 0-3000 rpm
Spindle Power 5.5 15 22 22 kN

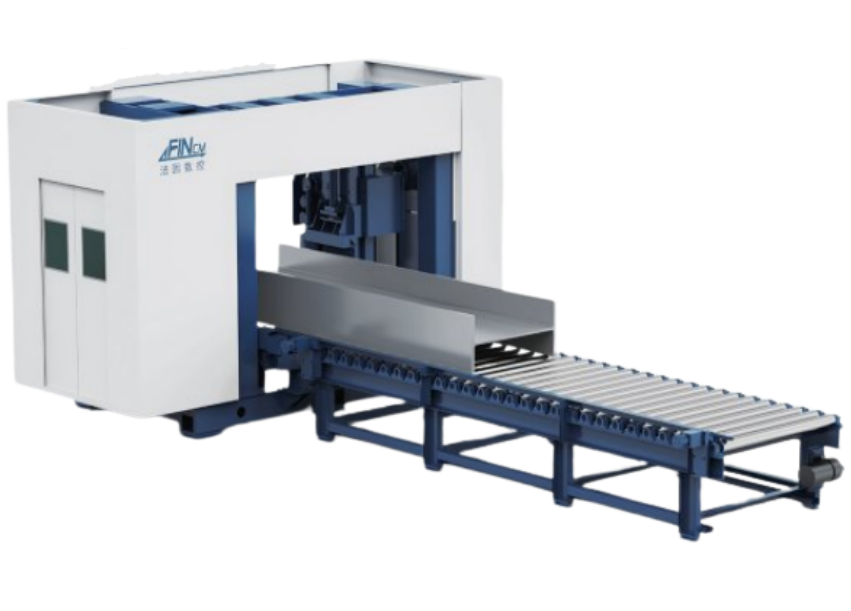

BDM SERIES
HIGH-SPEED THREE-SIDED
CNC DRILLING MACHINE

Machine Specification Table
Model BDM3040/3 BDM3046/3 BDM4035/3 Unit
Material Processing Range Length 32000 (Customizable) mm
Width 800-2400 800-2400 1500-3500 mm
Height 4000 4600 4000 mm
Structural Style Gantry type Qty.
Drilling Power Head Nos 3 Qty.
Max. Drilling Dia Φ50 mm
CNC Axis Nos 14 Qty.

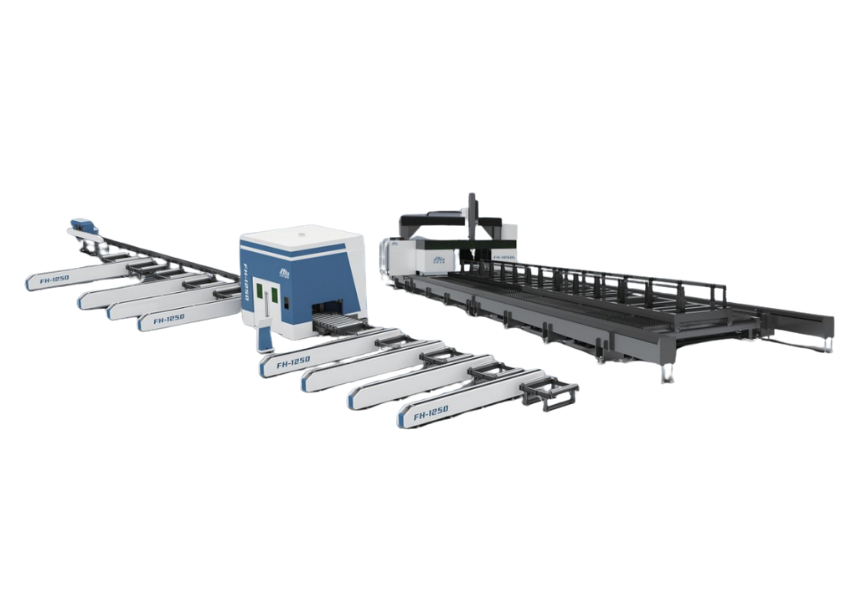

BEAM PROFILE
CUTTING LINE

FH-1250 / FH-1250L Specification Table
Model FH-1250L
H-beam steel processing dimensions 1250×600×12200 mm
Table size 12200×2500 mm
Flange width 100-600 mm
Web width 150-1250 mm
Laser power 12000W / 20000W / 30000W
Model FH-1250
Flange width 100-800 mm Cutting thickness ≤30 mm
Web width 150-1250 mm Maximum weight of single section steel 7000 kg
Cutting method Laser Positioning accuracy ±0.05 mm
Swing cutting A axis: ±90°    C axis: ±90°    U axis: Follow-up acceleration 0.5G
Laser power 12000W / 20000W / 30000W

BD SERIES
DOUBLE-SIDED HIGH-SPEED
CNC DRILLING AND MILLING MACHINE

Machine Specification Table
Model BD2035/2 BD3040/2 Unit
Material Processing Range Length 16000 (Customizable) mm
Width 400-2000 800-2400 mm
Height 3500 4000 mm
Structural Style Double column
Drilling Power Head Nos 2 Qty.
Max. Drilling Dia Φ50 mm
CNC Axis Nos 2*4 Qty.
Equipped with milling functions

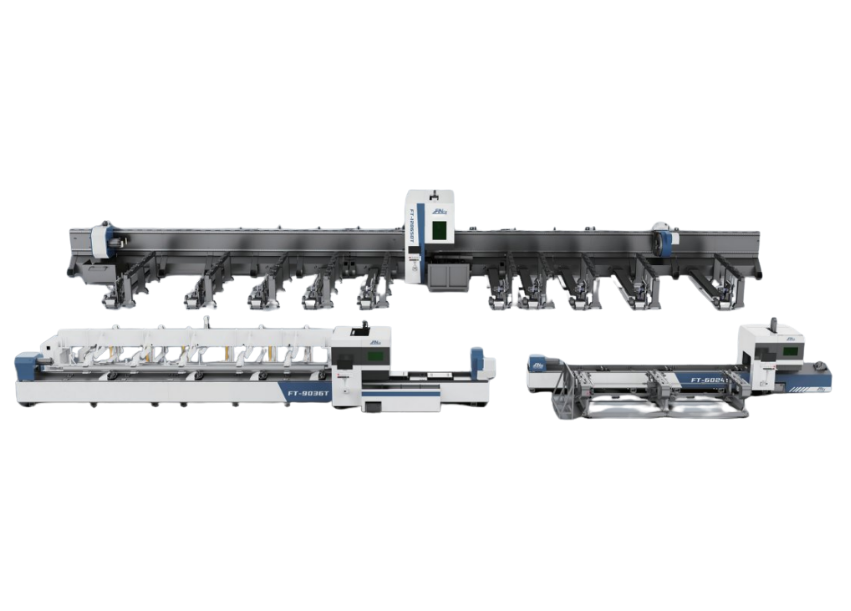

LASER PIPE
CUTTING MACHINE SERIES

FT Series Specification Table
Model FT-6024S FT-9036T FT-12065DT
Pipe Processing Diameter — Diameter of Round Pipe 240 mm 360 mm 650 mm
Square Pipe Diameter Side length 240 mm Side length 360 mm Side length 650 mm
Max Load of Chuck 400 Kg 1500 Kg 3000 Kg
Max Rotation Speed of Chuck 100 r/min 80 r/min 40 r/min
Maximum Acceleration 0.8G 0.6G 0.4G
X/Y Axis Positioning Accuracy 0.05 mm/m 0.05 mm/m 0.05 mm/m

Tower Industry

PLD/PHD SERIES
CNC DRILLING
MACHINES FOR PLATES

Machine Specification Table
Model PLD2016 PHD2016 PHD2020 PHD3030 Unit
Max. Plate Size 2000×1600 2000×1600 2000×2000 3000×3000 mm
Min./Max. Size Thickness 15-100 mm
Material Clamping Method Hydraulic clamp Hydraulic clamp
+
Self-centering Chuck
Max. Drilling Diameter Φ50 Φ50 Φ80 Φ80 mm
Spindle Rotating Speed 120-560 0-3000 0-3000 0-3000 rpm
Spindle Power 5.5 15 22 22 kN
